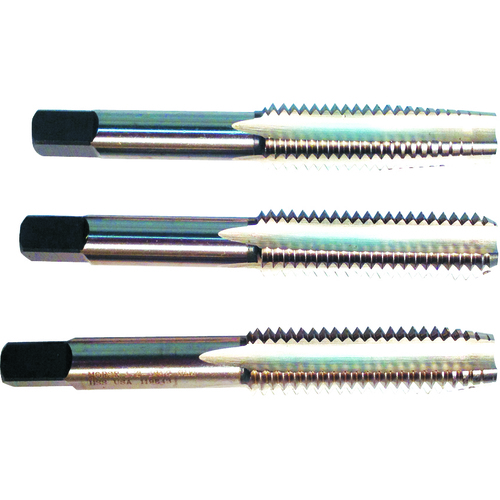

3 Pc. HSS Hand Tap Set M8 × 1.25 D5 4 Flute (Taper, Plug, Bottoming) Series/List #7500
| Thread Diameter Size (TDZ) | M8 | Overall Length (OAL) | 2-23/32″ |
| Thread Standard | Metric | Coolant Supply Property (CSP) | External |
| Pitch in mm | 1.25 mm | Flute Count (NOF) | 4 |
| Flute Type | Straight | Cutting Edge Material | HSS |
| Thread Tolerance Class (TCTR) | D5 | Quantity | 3 |
| Style | Straight Flute Hand Tap Set | Measurement Type | Metric |
| Tool Type | General Purpose Hand Taps | Series/List # | 7500 |
| Flute Length | 1-1/8″ | Contains | Taper, Plug, Bottoming |
| Cutting Direction (HAND) | Right Hand | Thread Pitch (TP) | 1.25 mm |
| Coating | Uncoated | Thread Size | M8 × 1.25 |
Product Features
| Remarks | Straight Flute hand taps are used for hand tapping and machine tapping in through holes or blind holes in a wide variety of materials. | Country of Origin | United States |
Shipping Info
Package Length
3.30000
Package Width
1.40000
Package Height
.50000
Package Weight
0.17
