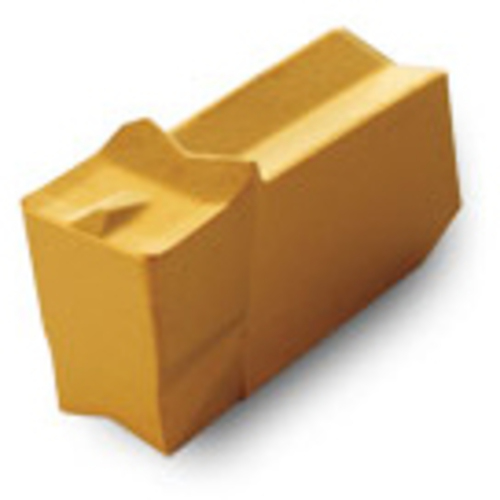

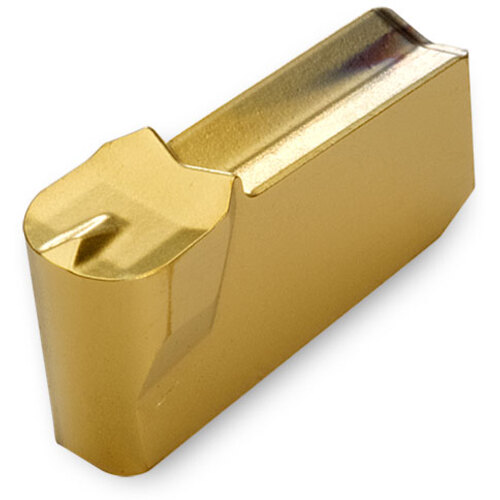

TIPV5.00E0.40 TT6030
Grooving Insert; 0.197″ CW ; Carbide ; TT6030 ; TiN+AlTiN

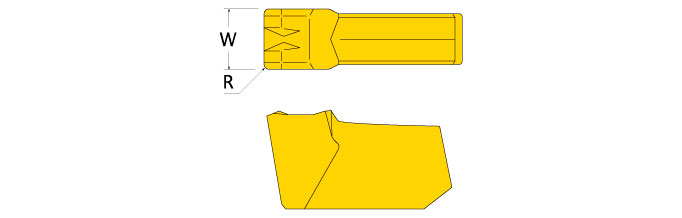

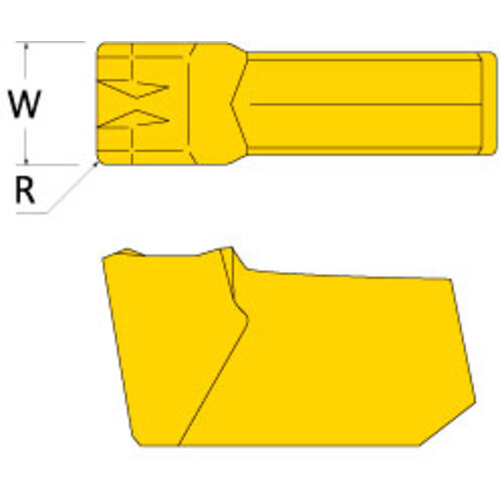

| Cutting Width (CW) | 0.197″ | Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0.016″ | Number of Cutting Edges | 1 |
| Thread Pitch Maximum (TPX) | 0.344″ | Insert Seat Size Code (SSC) | 4 |
| Coating | TiN+AlTiN | Measurement Type | Inch |
| Grade | TT6030 | Threads per Inch (TPI) | 8 |
| Shape | Parrallelogram | Body Material | Carbide |
| Cutting Edge Material | Carbide | Cutting Edge Length (L) | 0.401″ |
| Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | | Height | 0.344″ |
Product Features
| Country of Origin | Usa |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.011
