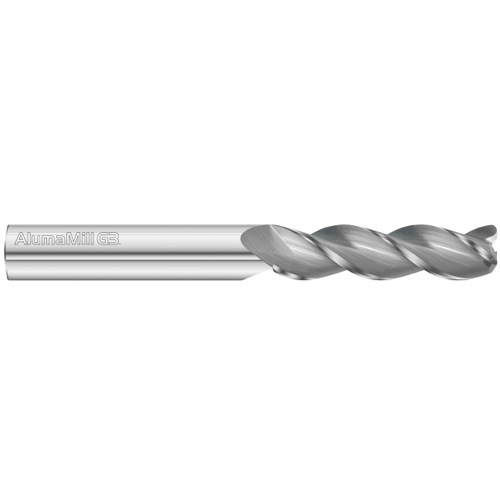

Corner Radius End Mill; 3/4″ Dia. × 3-1/4″ LOC × 3/4″ Shank Dia. × 6″ OAL ; 3 FL ; Carbide ; Uncoated ; Series 3833
| Cutting Diameter (DC) | 3/4″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Usable Length (LU) | 3-1/4″ |
| Depth of Cut Maximum (APMX) | 3-1/4″ | Corner Radius (RE) | 0.06″ |
| Overall Length (OAL) | 6″ | Tool Type | Center Cut|Single-End |
| Cutting Edge Material | Carbide | Length Group | Extra Long |
| Coating | Uncoated | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Decimal Equivalent | 0.75″ |
| Flute Helix Angle (FHA) | 37.5 Degrees | Series/List # | 3833 |
| Shank Type | Round |
Product Features
| Remarks | |
Country of Origin | UNITED STATES |
Shipping Info
Package Weight
1.080
